Ultrasonic cleaning machine equipment can be divided into two categories: general ultrasonic cleaning machine and special ultrasonic cleaning machine. These two types have their own uniqueness. In this paper, the product structure and characteristics of general and special ultrasonic cleaning machines are analyzed and introduced in detail. At the same time, through comparison, the differences and uniqueness of the two ultrasonic cleaning machines can be found, as explained below:

1、 專用超聲波清洗機：

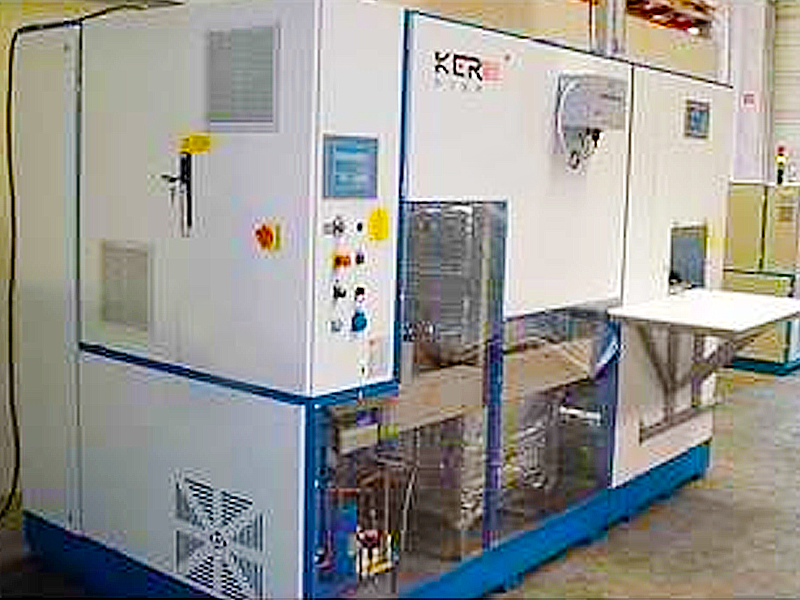

1. Special ultrasonic cleaning machine:

一般安裝在生產線上，用于清洗某些特定物體。典型的超聲波清洗設備介紹：清洗后的物體從進料口可驅動的不銹鋼專用網帶送入超聲波清洗槽進行清洗，經噴涂、干燥等工序后排放，這樣清潔后的物品可以直接包裝和儲存。

It is usually installed on the production line to clean certain specific objects. Introduction to typical ultrasonic cleaning equipment: the cleaned objects are sent to the ultrasonic cleaning tank from the stainless steel mesh belt that can be driven by the feed inlet for cleaning, and then discharged after spraying, drying and other processes. In this way, the cleaned objects can be directly packaged and stored.

各工序簡要說明如下：

Brief description of each process is as follows:

進料：物件進料可采用半自動進料；物件出料可采用自動收料或手工收料方式，格被清洗物件裝入包裝盒內。

Feeding: semi-automatic feeding can be adopted for the feeding of articles; The material can be discharged automatically or manually, and the cleaned objects can be put into the packaging box.

2、 通用超聲波清洗機：

2. Universal ultrasonic cleaning machine:

其結構一般有兩種情況：超聲波電源與清洗機集成或分開布置。一般來說，小功率（200W以下）清洗機采用整體式結構，大功率清洗機采用分體式結構。

Its structure generally has two conditions: the ultrasonic power supply and the cleaning machine are integrated or arranged separately. Generally speaking, the low-power (below 200W) cleaning machine adopts the integral structure, and the high-power cleaning machine adopts the split structure.

超聲波清洗機的分體式結構由三個主要部分組成：超聲換能器、清洗缸（清洗槽）、超聲波發生器。清洗缸是一個不銹鋼容器，用于裝載清洗液和清洗后的工件，知名的清洗設備廠家一般用304不銹鋼作為槽體材料。大多數工件可以先安裝在網架內，然后一起放入圓筒內進行清洗。超聲波發生器：超聲波清洗機所用的超聲波發生器根據所用元件的類型可分為電子管型、晶閘管型和晶體管型。近年來，人們開始采用大功率“功率模塊”的方法。輸出功率從幾十瓦到幾千瓦不等，任務頻率從15KHz到40KHz不等。

The split structure of the ultrasonic cleaning machine consists of three main parts: ultrasonic transducer, cleaning cylinder (cleaning tank) and ultrasonic generator. The cleaning cylinder is a stainless steel container used for loading cleaning fluid and cleaned workpieces. Well known cleaning equipment manufacturers generally use 304 stainless steel as the tank material. Most workpieces can be installed in the grid frame first, and then put into the cylinder together for cleaning. Ultrasonic generator: the ultrasonic generator used in the ultrasonic cleaning machine can be divided into electronic tube type, thyristor type and transistor type according to the type of components used. In recent years, people begin to adopt the method of high-power "power module". The output power ranges from tens of watts to thousands of watts, and the task frequency ranges from 15KHz to 40KHz.
